10U 10.5 inch Half-Rack 400mm Stackable Rack Cabinet
10U, (10.5 inch 266mm width) half-rack 400mm stackable cabinet, Front and Rear fixings with 20 cage nuts, washers and screws provided.
10U, (10.5 inch 266mm width) half-rack 400mm stackable cabinet, Front and Rear fixings with 20 cage nuts, washers and screws provided.

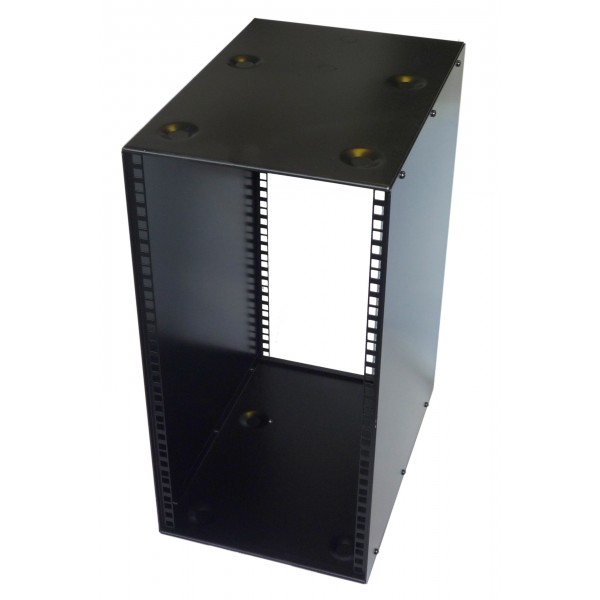

Half-Rack case (approximate dimensions for this box are, 271mm wide, 465mm high and 400mm deep and weighs in at around 7.5 kilo's). Inside width dimension is 238mm. Distance between fixing hole centers is 249mm
The box has rolled safety edges on front face and rear face, as well as looking good, it’s a cool safety feature. The box also has four large indents, inwards on top and outwards on the bottom, and then each box can easily be stacked on top of each other.
This box has 10U of standard 10.5" profiles at the front and rear at 384mm approx apart. The top and bottom also have a pre punched knock-out hole for any wiring if the box is mounted on a wall.
The box is made from strong and durable 1.2mm Zintec material, then powder coat black. It is supplied in flat pack form and comprises of four pieces, one top, one bottom and two sides, the whole thing is easily assembled with the screws
Contents / Quantity
1 top, 1 bottom, 2 sides, 8(M4x6) screws, 20 M6 cage nuts, 20 M6 screws, 20 M6 washers
ALSO AVAILABLE IN 3U 4U 5U 6U 8U 10U AND 16U HEIGHT.
