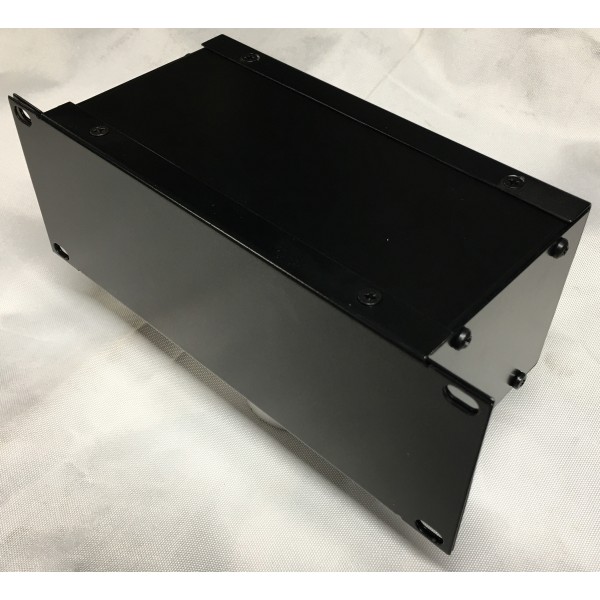

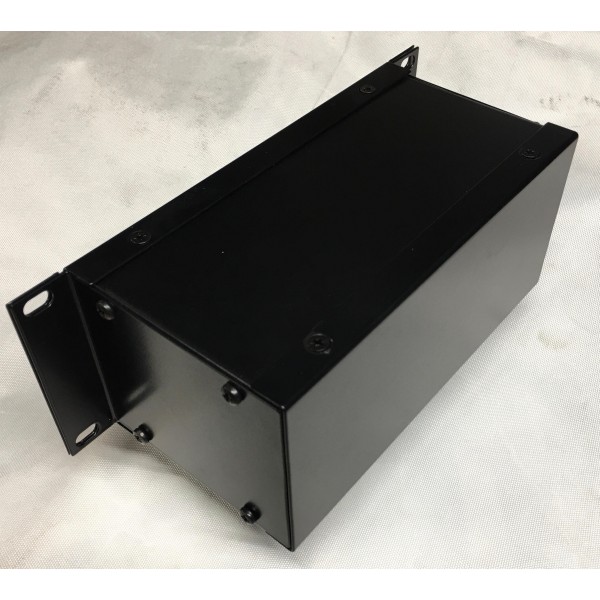

2U 9.5 inch half rack mount 100mm deep enclosure chassis

2U 9.5 inch half rack mount  chassis enclosure 100mm deep, with front blank panel in black

External Height 89mm Depth 100mm  Width 195mm (rack ear centres 227mm) overal panel width 241mm

Internal Height 80mm Depth 97mm Width 188mm  dimmensions


For Half Rack mounted electronics such as networking and data communications equipment,
computers, cabling, sound and studio systems,laboratory instruments and industrial control/switching systems (see our 2U range of panels for different front plate ideas).
Easy access to inside,

Features
•Heights: 2U
•Robust case body with top and base panels and side  panels
•Front panel (from our 2U range of panels - others could be used ie- XLR)
 Rear panel (from our 2U range of panels - others could be used ie- XLR -the ears will need to be cut off - Phone for details)
Material
•1.5mm mild steel

Contents -Easy assembly kit
1.Top panel
2.Base panel
3.Side panels with ears (x2)
4.2U 9.5" front blank panel
5.Rear panel
6.Panel and enclosure M4 fixing screws*

*Rack cagenuts washers and screws not supplied (see our shop for pack offers)
